  3. FANUC A16B-1211-0280/03A

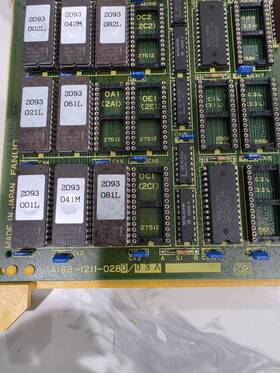

FANUC A16B-1211-0280-03A Multilayer Pcb Chassis Mount A16B-1211-0280/03A FR-4 5V

A16b-1211-0280 Fanuc A16b-1211-0280/03a Multilayer Fr-4 Pcb 5v Chassis Mount

( Brand: Fanuc ), ( Manufacturer Part Number: A16B-1211-0280/03A ), ( Part Type: Mount ), ( Mounting Style: Chassis Mount ), ( Pcb Type: Multilayer Pcb ), ( Number Of Tie-points: 27512 ), ( Operating Voltage: 5 V ), ( Item Height: 1.6 Mm ), ( Material: Fr-4 ), ( Item Length: 330 Mm ), ( Item Width: 150 Mm )

Review FANUC A16b-1211-0280/03a Multilayer Fr-4 Pcb 5v Chassis Mount

The **FANUC A16B-1211-0280/03A** is a high-performance, multilayer FR-4 printed circuit board (PCB) designed specifically for chassis-mounted applications within industrial automation systems, particularly those integrated into FANUC s robust servo and motion control platforms. This meticulously engineered PCB is built upon a **4-layer FR-4 substrate**, a material renowned for its excellent mechanical stability, thermal resistance, and electrical insulation properties, making it ideal for environments where reliability and durability are paramount. The board operates at a nominal **5V DC supply**, ensuring compatibility with a wide range of low-voltage control systems while maintaining efficiency and minimizing power consumption. Its compact yet robust design allows for seamless integration into FANUC s servo amplifiers, drives, and other motion control units, where precise signal routing and high-density component placement are critical for optimal performance.

The **A16B-1211-0280/03A** features a **chassis-mount configuration**, which means it is engineered to be securely fastened within an enclosure, providing protection against environmental factors such as dust, moisture, and mechanical stress. This design ensures long-term operational integrity, even in demanding industrial settings where vibrations, temperature fluctuations, and electrical noise are common. The PCB incorporates **high-quality copper traces and vias**, optimized for low inductance and minimal signal degradation, which is essential for maintaining the accuracy and responsiveness of servo-driven systems. Additionally, the board s layout is carefully structured to accommodate critical components such as **microcontrollers, power regulation circuits, and signal conditioning elements**, all of which contribute to the precise control and stability required in automated machinery, CNC systems, and robotic applications.

One of the standout features of this PCB is its **modular and upgradeable nature**, allowing engineers to adapt it for various FANUC servo models while ensuring backward and forward compatibility with existing systems. The **0280/03A variant** specifically indicates a refined iteration of the design, potentially incorporating enhancements in component placement, thermal management, or signal integrity to further improve performance. Whether used in **factory automation, material handling systems, or precision machining**, this PCB serves as a foundational element that supports the seamless operation of FANUC s advanced motion control solutions. Its combination of **reliability, precision engineering, and industrial-grade construction** makes it an indispensable component for applications where performance consistency and longevity are non-negotiable.
